Bunting’s metal recovery solutions at E-Waste World Conference 2023
21.06.2023The effective recovery of valuable metals is an important step in the economic viability of recycling e-waste. Technology that maximises metal recovery and purity is the focus for Bunting on stand 110 at the E-Waste World Conference & Expo, taking place on 28-29 June 2023, Frankfurt/Germany. Bunting is joined on the stand by local representative Marcel Graef from 3SMI.

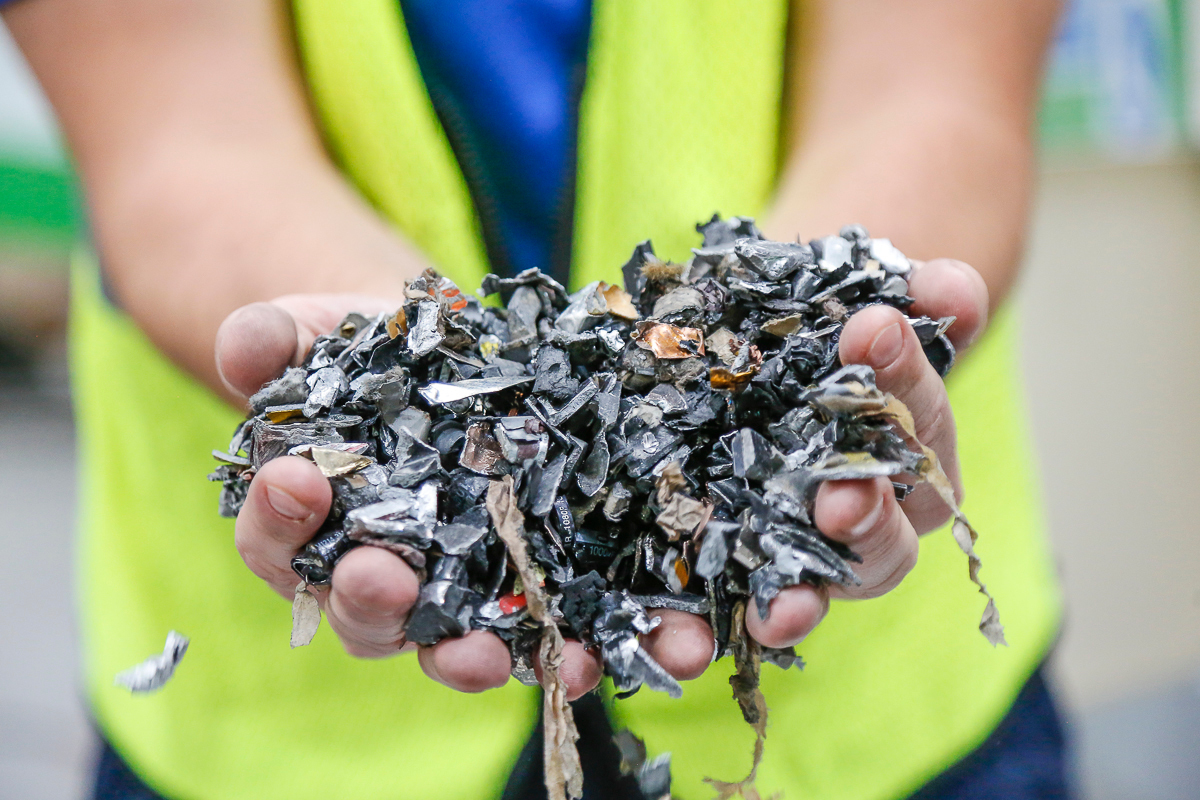

Non-ferrous metal recovered on an Eddy Current Separator
© Bunting
Global e-waste is estimated to hold approximately 56 billion € worth of raw materials such as gold, palladium, silver and copper. However, only 17 % of global e-waste is reported as being collected and properly recycled each year. The depletion of mining reserves and the rising cost of mined ore highlight the necessity of ‘urban mining’ where valuable metals are recovered from secondary materials such as e-waste.
The nature of e-waste means that metal recovery often requires complex processing with specialist equipment and separation technology playing a key role in successful recycling. There are several stages of metal separation in a typical e-waste recycling plant, for which Bunting provide solutions. Ferrous metal recovery is commonly early in the process, with relatively straight-forward recovery using Overband Magnets, Drum Magnets or Pulley Magnets. These are both in standard strength ceramic ferrite and high-intensity rare earth magnet designs.

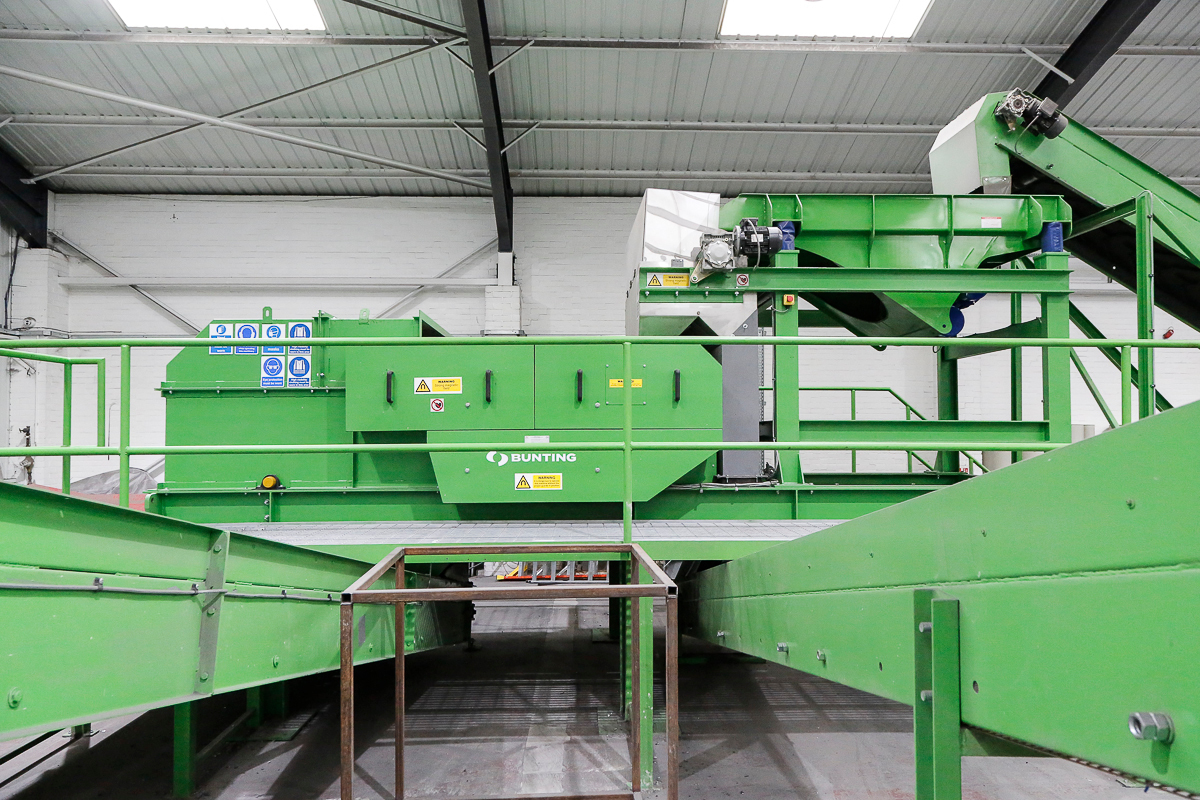

Metal separation module at the Zixtel e-waste recycling plant
© Bunting
The recovery of weakly magnetic materials, such as fragmented stainless-steel and even printed circuit boards, has frequently proved problematic. The patented SSSC and HISC magnetic separators use exceptionally strong magnetic fields to preferentially separate the weakly magnetic fraction.
After removal of the magnetic materials, the focus turns to non-ferrous metals including aluminium and copper. Bunting developed the High-Intensity Eccentric (HIE) Eddy Current Separator to separate non-ferrous metals as small as 3 mm and often smaller. The remaining fine fraction is passed through an ElectroStatic Separator, which enables the recovery of metals such as fine copper wire.

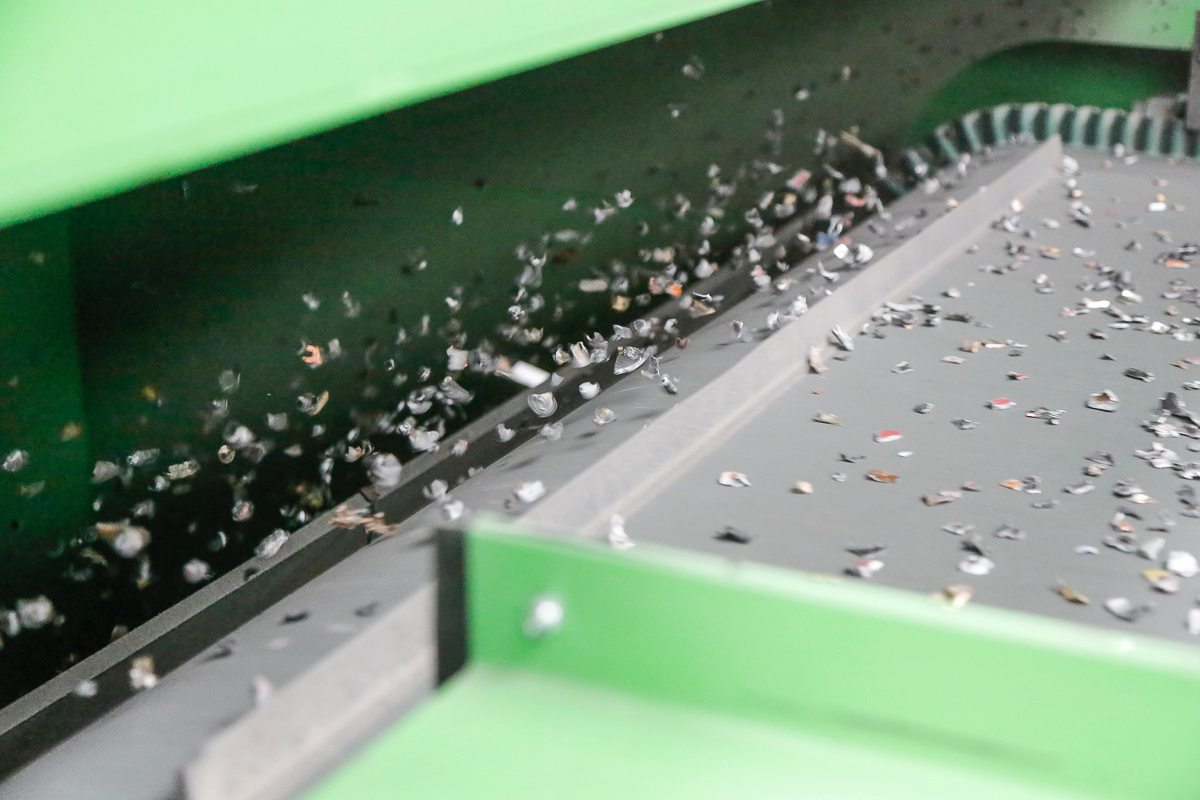

Non-ferrous metal separated on an Eddy Current Separator
© Bunting
At the E-Waste Conference and Expo, Bunting’s team will draw on the experience of installing metal separation equipment at e-waste recycling facilities such as Zixtel Ltd in the UK. Zixtel’s engineering team designed and built a e-waste recycling plant, which included a Metal Separation Module and Overband Magnet from Bunting. The Module included a high-intensity Drum Magnet for separating weakly magnetic materials and an Eddy Current Separator to recover non-ferrous metals. With the existing process, Zixtel presently handles in excess of fifty different product streams. The material output of the plant is 70 % metal, 25 % printed circuit boards and plastics, 5 % destined for an energy-to-waste plant, and 0 % to landfill.
To support companies who are developing e-waste recycling operations or are seeking to improve metal recovery rates, Bunting has a material test facility to assess separation capabilities. The Customer Experience Centre at Bunting’s Redditch facility in the UK is home to a wide range of metal separation equipment including the ElectroStatic Separator and Eddy Current Separator. “E-Waste has never held a greater value,” explained Bradley Greenwood, Bunting’s European Sales Manager. “The successful recovery of metals involves many stages of size reduction, screening, and separation. Our metal separators play a key role in that process, maximising the recovery of metal prior to more complex processing. We look forward to speaking with e-waste recyclers at the conference.”
